QuadGuard II

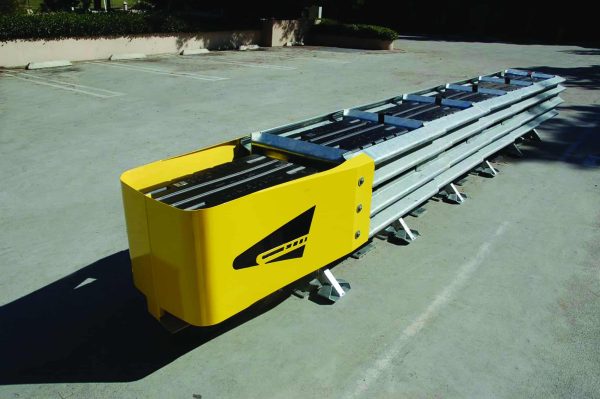

The QuadGuard® II is a redirective, non-gating crash cushion that consists of an engineered steel nose and crushable, energy absorbing cartridges surrounded by a framework of steel Quad-Beam™ panels. The system is tested to NCHRP Report 350 Test Level 2 and Test Level 3.

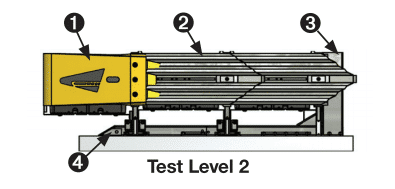

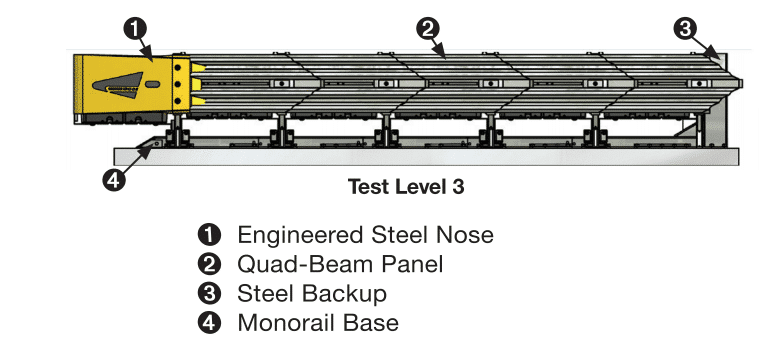

The QuadGuard® II is a redirective, non-gating crash cushion that consists of an engineered steel nose and crushable, energy absorbing cartridges surrounded by a framework of steel Quad-Beam™ panels. The system is tested to NCHRP Report 350 Test Level 2 and Test Level 3. The Test Level 2 model is 25% shorter than the original QuadGuard® measuring less than 10’ (3 m). The Test Level 3 model is nearly 3’ (.9 m) shorter in length than its predecessor. The QuadGuard® II can be used to shield fixed objects 24” to 126” wide (610 mm to 3.2 m) while using less than 19’ in length (22’ for the 126”).
Features and Benefits:
- Self-supporting steel nose.
- Replaceable energy absorbing cartridges.
- No anchoring chains or tension cables are needed.
- High strength Quad-Beam™ panels.
- Tested to speeds from 25 mph (40 km/h) to 62 mph (100 km/h).
