QuadGuard Wide

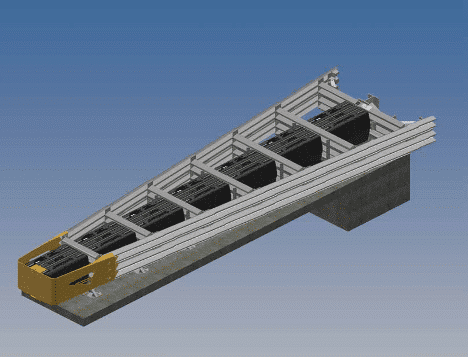

The QuadGuard® is a redirective, non-gating crash cushion that consists of crushable, energy absorbing cartridges surrounded by a framework of steel Quad-Beam™ panels. The system is tested to NCHRP Report 350 Test Level 1, Test Level 2, and Test Level 3.
The QuadGuard® is a redirective, non-gating crash cushion that consists of crushable, energy absorbing cartridges surrounded by a framework of steel Quad-Beam™ panels. The system is tested to NCHRP Report 350 Test Level 1, Test Level 2, and Test Level 3. It can be used to shield fixed objects of 2′ to 10′-6″ wide (610 mm to 3,200 mm) while using less than 22′ in length. Higher speed QuadGuard® crash cushion units are available.
Features and Benefits:
- Replaceable energy-absorbing cartridges.
- High strength Quad-Beam™ panels.
- Compact, modular design (one to twelve bays) tested to speeds from 25 mph (40 km/h) to 75 mph (120 km/h).
- Systems available in various lengths and widths to accommodate nearly any designed application.
- No anchoring chains or tension cables are needed.
